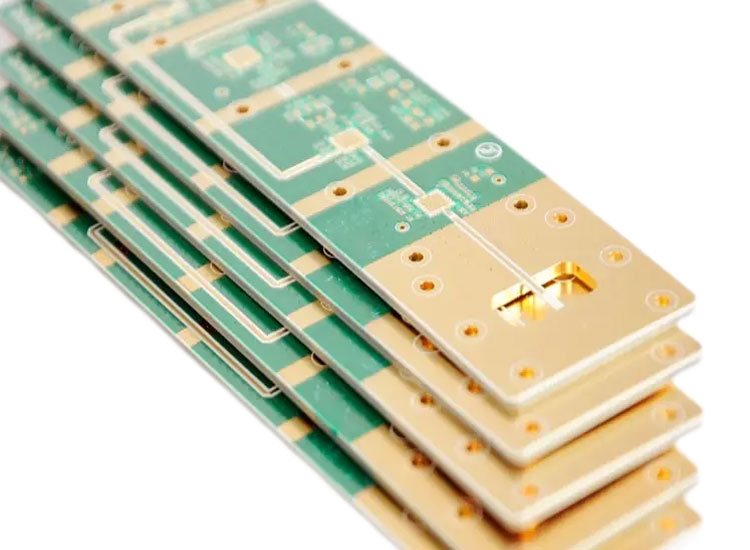

PCBs with a copper thickness of more than 70um are called thick copper PCBs, sometimes also called thick copper PCBs. Copper thickness typically varies from 105 to 400 µm. The thicker the copper, the higher the power dissipation of the board. These thick copper plates are used for high current output and improved thermal management. Thick copper makes it possible to create boards with cross-sections for high current loads, which also facilitates heat dissipation. Greenstone is one of the China heavy copper pcb heavy copper pcb manufacturers which can provide the most professional products and services.
Thick copper PCB is widely used in
various household appliances
high-tech products
military
medical
other electronic equipment.
The application of thick copper PCB makes the core component of electronic equipment products-circuit boards have a longer service life, and at the same time it is very helpful to the size reduction of electronic equipment.
Feature | Capability |
Material | FR-4 Standard Tg 140°C, FR4-High Tg 170°C |
Min. Track/Spacing | For External layers: 4oz Cu 10mil/13mil,5oz Cu 12mil/15mil,6oz Cu 15mil/15mil, For Internal layers: 4oz Cu 8mil/8mil,5oz Cu 10mil/10mil,6oz Cu 12mil/12mil |
Min. Hole Size | 0.15 ~ 0.3mm |
Max Outer Layer Copper Weight (Finished) | 8oz |
Board Thickness | 0.6-6mm |
Surface Finishing | HASL lead free, Immersion Silver, Immersion gold, OSP, Hard Gold. |
Solder Mask | Green, Red, Yellow, Matte Black, Matte green, Blue, White, Black |
Silkscreen | White, Black |
Via Process | Tenting Vias, Plugged Vias, Vias not covered |
Testing | Fly Probe Testing, fixture test and A.O.I. testing |
Build time | 5-15 working days |
Lead time | 3-5 working days |
