In the world of electronics manufacturing, two critical terms often come up: Box Build Assembly and PCBA (Printed Circuit Board Assembly). While both are integral parts of the production process for electronic devices, they refer to different stages and types of assembly. Understanding the distinction between box build assembly and PCBA is essential for manufacturers, as well as businesses looking to outsource their production. In this article, we will explore the differences, processes, and key considerations for both types of assembly.
PCBA stands for Printed Circuit Board Assembly. It refers to the process of attaching electronic components (such as resistors, capacitors, microchips, and connectors) onto a printed circuit board (PCB). The PCB acts as the foundation that physically supports and electrically connects the components, which are critical to the device’s functionality.
The pcba pcb assembly process generally includes several key steps:
Solder Paste Printing: A stencil is used to apply solder paste onto the pads of the PCB where components will be placed.
Component Placement: Components are placed onto the PCB, either manually or using automated machines (pick-and-place machines).
Soldering: The PCB is passed through a reflow oven or wave soldering process to melt the solder paste, creating strong electrical connections between the components and the PCB.
Inspection and Testing: After the soldering process, the PCB is inspected (often through Automated Optical Inspection (AOI) or X-ray) to ensure the solder joints are correctly formed and the components are properly placed.
Functional Testing: The PCB is tested to ensure it functions as expected before moving on to further assembly or integration.
PCBA focuses solely on the assembly of the PCB and its electronic components. It does not involve the final packaging or integration of the electronic assembly into a complete product.

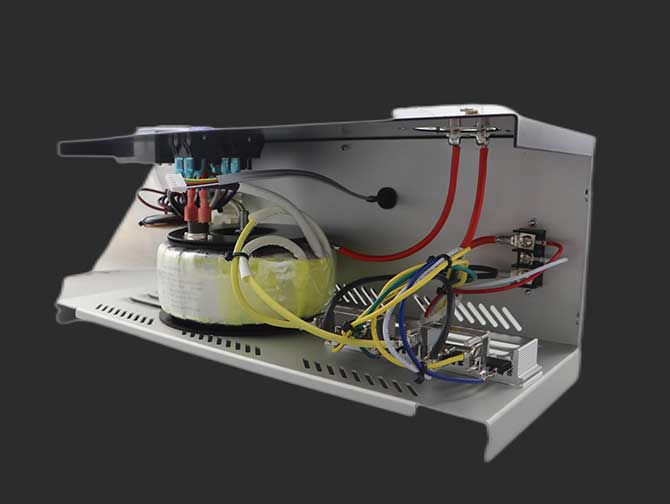

Box Build Assembly refers to the final stage of the electronics manufacturing process where the assembled PCBs, along with other necessary components, are integrated into an enclosure or casing to form the final product. This is a more comprehensive process that includes all the additional mechanical, electrical, and sometimes cosmetic elements that transform a simple PCB into a fully functional electronic device.
The Box Build Assembly process generally includes the following steps:
Component Integration: This involves placing the assembled PCB into the product’s enclosure and connecting it with other components like power supplies, connectors, cables, displays, sensors, etc.
Mechanical Assembly: Box build often involves mechanical assembly tasks such as attaching external parts (buttons, screws, enclosures), mounting devices, and other hardware necessary for the product's final form.
Wiring and Cable Management: Cables and wires are routed and connected to the PCB or other parts of the assembly. This ensures that power, data, and signals are properly distributed to all parts of the product.
Final Assembly and Testing: Once all parts are assembled, the product is tested for functionality and quality assurance. This includes checking electrical performance, safety compliance, and any other specific testing requirements (such as thermal or environmental tests).
Packaging and Shipping: The completed product is packed for shipment, which may include protective packaging, labeling, and final inspection.
Box Build Assembly focuses on the entire product, incorporating the PCB assembly along with all other components, and ensuring the product is fully functional and ready for consumer use.
While both Box Build Assembly and PCBA are essential in electronics manufacturing, they differ significantly in their scope and focus. Below are the main differences between the two processes:
PCBA: Involves the assembly of the PCB and the mounting of components like resistors, capacitors, ICs, and connectors directly onto the PCB.
Box Build Assembly: Involves the integration of the PCB with additional components, including mechanical, electrical, and enclosure elements, to create the final product.
PCBA: The complexity of PCBA is limited to the electronic components and the PCB. While the assembly process can be intricate due to the small size of components, it does not require mechanical integration or packaging.
Box Build Assembly: Box build is more complex as it involves not just the PCB but also wiring, external components, testing, and final assembly. It’s the step that brings all the parts together to form the complete working product.
PCBA: The end product of a PCBA process is a functioning circuit board, but it is not a finished product. The PCB may need further integration, testing, and assembly before it becomes a complete device.
Box Build Assembly: The end product of a box build process is a fully assembled, packaged, and ready-to-use electronic product. This could be anything from a smartphone, medical device, or consumer electronics to industrial machinery.
PCBA: The testing in PCBA focuses mainly on ensuring that the components are correctly soldered and that the PCB functions as intended. This often involves functional testing and electrical testing.
Box Build Assembly: Testing in box build assembly involves a broader range of checks, including mechanical and electrical tests, product safety compliance, and performance under various conditions.
PCBA: PCBA can be highly customized based on the specific components needed for the circuit design. However, it’s usually the first step of a larger assembly process.
Box Build Assembly: Box build often involves more customization as it integrates various components and creates a tailored, fully functional device. Customization could also involve designing and modifying the enclosure and housing to meet customer requirements.
The decision to opt for PCBA or Box Build Assembly depends on the stage of product development and the nature of your project:
PCBA is ideal if you need a reliable, high-quality circuit board assembled with precision but are still in the development phase, working with a component-only product or planning further integration into a final device.
Box Build Assembly is the solution if you're looking to produce a fully assembled, ready-to-use product. This is the final step for bringing an electronic product to market, particularly when you need to combine the PCB with other components and housing.
For example, a company designing a new medical device might first outsource the PCBA process to ensure the circuit board is properly assembled. Once the PCB is complete and functional, the device will then move to box build assembly, where it will be integrated into the final enclosure, tested, and prepared for market.
Both Box Build Assembly and PCBA are crucial steps in the electronics manufacturing process, but they serve different purposes. PCBA focuses on the assembly of the circuit board, while Box Build Assembly involves the complete integration of the PCB into a functional product. Understanding these differences is essential for businesses looking to outsource their manufacturing or manage production in-house. By selecting the right assembly process for their needs, manufacturers can ensure that their electronic devices meet both performance and quality standards.
Box Build Assembly China offers an excellent solution for businesses seeking high-quality, cost-effective manufacturing for electronic products. China’s advanced manufacturing infrastructure, skilled labor, and competitive pricing make it an ideal location for companies to outsource their box build assembly needs. From PCB integration to final product packaging, China’s expertise ensures efficient production and reliable results. Whether you are developing consumer electronics, medical devices, or industrial products, box build assembly in China provides comprehensive support, from assembly to testing and shipping, ensuring a smooth path to market-ready devices at competitive costs.
